Software options for Modbus RTU transmitters
The battery powered modem box can be used with optional MODBUS software.
Included in the package is a PC program, MEP7 Modbus Tool, dedicated for configuration of PT-series and LT-series with MODBUS communication.
| Article number | Description | Transmitter type |
| PI200RS | RS485 dongle | All Modbus models |
| PI200PS | PI200PS Modbus tool with inbuilt sensor power supply and RS485 dongle | All Modbus models |
| PI200PSD | Display Modbus configurator | All Modbus models |
| PI200P | Modbus tool with RS485 dongle | All Modbus models |
| PI100P | Hart PC Package | All Hart models |
Display option

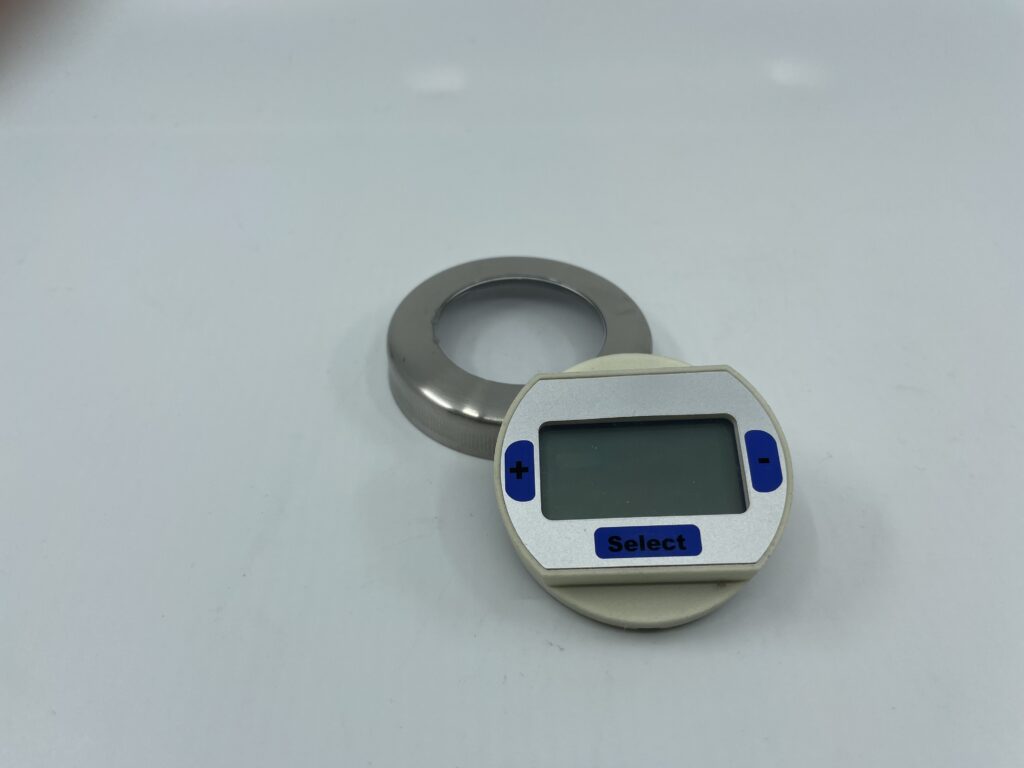

D10 series displays consist of three types for different installation and connection to Pondus Instruments transmitters. All displays can show the pressure/level value in figures and bar graph. The values are also always shown in percentage of range. The values can be shown in optional units.
Article number | Description | Transmitter type |
Display D10RSS | For display of process value connected in series with 4-20 mA signal/supply | All models |
Display D10RS | For display of process value and configuration of Modbus models | All Modbus models |
Display D10RSH | For display of process value and configuration of Modbus models. For remote sensor application | All Modbus models |
P133702 | Display D10RSS complete with cover. | All models |
Flanges, mounting kit and adapters.
|
Article number |
Description |
Transmitter type |
|
P110301 |
Wall mounting kit |
Code 1 Code 2 |
|
P130201 |
Welding sleeve G1½” |
Code 3 |
|
P130301 |
Adapter 2” to G1½” |
Code 3 |
|
P130401 |
Flange 80 mm PN40 DIN2656 SS |
Code 4 |
|
P130402 |
Flange 80 mm PN40 DIN2656 SS |
Code 4 |
|
P103602 |
Flange 50 mm PN40 316L/1.4404 |
Code 5 |
|
P103601 |
Flange 50 mm PN10 316L/1.4404 |
Code 5 |
|
P103603 |
Flange 50 mm PN6 316L/1.4404 |
Code 5 |
|
P109801 |
Flange 50 mm ”slip on” 150 ib |
Code 5 |
|
P109802 |
Flange 50 mm ”slip on” 300 ib |
Code 5 |
|
P109803 |
Flange 50 mm ”slip on” 600 ib |
Code 5 |

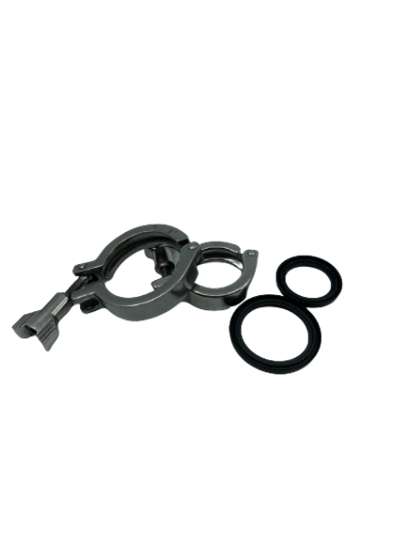

Tri Clamp process connections
D10 series displays consist of three types for different installation and connection to Pondus Instruments transmitters. All displays can show the pressure/level value in figures and bar graph. The values are also always shown in percentage of range. The values can be shown in optional units.
Article number | Description | Transmitter type |
K380000 | Clamp ring 38 | Code 9 |
K380001 | Connection piece clamp 38 | Code 9 |
K380002 | Gasket ring clamp 38 | Code 9 |
P112201 | Hygienic with extended diaphragm 38 | Code 9 |
K380003 | Clamp ring 51 | Code A |
K380004 | Connection piece clamp 51 | Code A |
K380005 | Gasket ring clamp 51 | Code A |
Differential Pressure valves, brackets, gaskets, bleed screws.
Article number | Description | Transmitter type |
L3/STHXX-Q-R14 | 3-way valve for Differential Pressure | PT600 differential pressure |
L5/CTHXX-R14 | 5-way valve for Differential Pressure | PT600 differential pressure |
TT1002 | Mounting bracket for 2-, 3- or 5-way valve | PT600 |
M6SAM10X40 | M10 x 40 hex bolt, 304 | PT600 |
MC6SA2M10X40 | M10 x 40 socket bolt, 305 | PT600 |
TT1000 | 2½” pipe clamp for pipe mounting of bracket 302 | PT600 |
Tbd | Bleed screw | PT600 differential pressure |
Tbd | Adapter for DP ½” NPT Female “Kidney flange” | PT600 differential pressure |
Cables

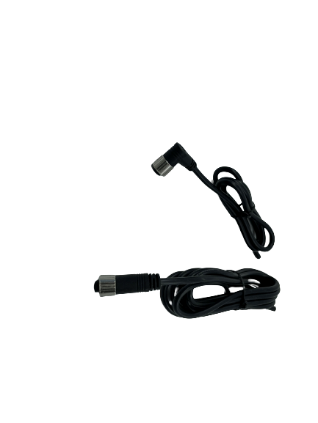

M12 cables for electrical connection.
Article number | Description | Transmitter type |
K810002 | Cable 2 m with moulded contact | PT06, PT600 |
K810005 | Cable 5 m with moulded contact | PT06, PT600 |
K810010 | Cable 10 m with moulded contact | PT06, PT600 |
K810015 | Cable with screw terminal 90 deg | PT06, PT600 |
K810016 | Cable with screw terminal straight | PT06, PT600 |
K810017 | Cable 2 m with moulded contact both ends two sensors | PT600 |
K810018 | Cable 5 m with moulded contact both ends two sensors | PT600 |
K810019 | Cable 10 m with moulded contact both ends two sensors | PT600 |
Accessories removable during production
The transmitter can be removed during operation and comprises three parts, the transmitter, a ball valve and a welded stud or compression flange DN80.
This compression flange is designed to fit an ANSI or DIN 80 mm/3” flange and may be installed to measure levels according to the hydrostatic principle.
Article number | Description | Transmitter type |
P122901 | Welding stud 60 mm | Code 6 |
P123101 | Compression flange DN80 | Code 6 |
P123001 | Ball valve PN63, DN32 | Code 6 |
High pressure nut for SMS38, pressure > 20 bar
The transmitter can be removed during operation and comprises three parts, the transmitter, a ball valve and a welded stud or compression flange DN80.
This compression flange is designed to fit an ANSI or DIN 80 mm/3” flange and may be installed to measure levels according to the hydrostatic principle.
Article number | Description | Transmitter type |
HM | High pressure nut | Code 8 |

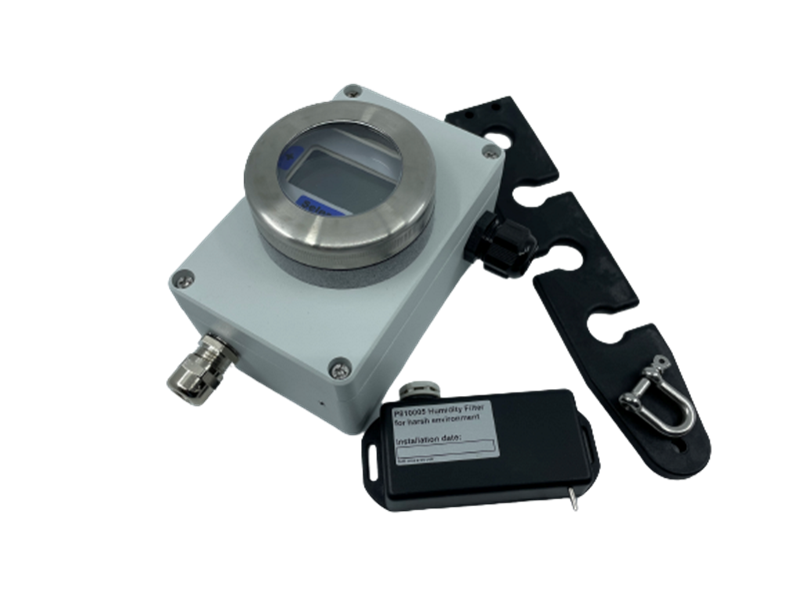

LT series accessories
Installation box, suspension clamp, fluid filter for hash environment and more.
Article number | Description | Transmitter type |
Clear text | Other cable length >10 meter | All LT-series |
Clear text | Teflon coated cable max 5 meter | LT300, LT60, LT600, LT600, LT10 |
P152101 | Suspension clamp | LT-series |
Box100 | Connection box | LT-series |
Box100L | Connection box lightning protected | LT-series |
Box100D | Connection box with display option | LT-series |
Box100 display cover | Cover with display for Box100 | LT-series |
LT20010 | Humidity filter for harsh environment | LT-series |
Certificates & service
Article number | Description | Transmitter type |
102512 | Material certificate 3.1B | All types |
102510 | Calibration certificate | All types |
102511 | Electropolishing of media touched parts | Code 9, Code A |
102509 | Calibration protocol | All types |
Clear text | Test of transmitter with protocol (pressure & temperature test) | All types |
Clear text | Configuration of Tag no. on id-plate | All types |
